MK-975.1 Laydown Machine
Meticulously engineered for precise laydown applications.
The MK-975.1 laydown machine is engineered for precise hem, waistband, side seam, and gusset laydown applications. Tailored for intimates, activewear, outerwear, and leisurewear garments, it epitomises precision laydown, guaranteeing consistent fabric placement to elevate product quality standards.
Its high-speed operation not only bolsters production efficiency but also ensures a rapid and dependable laydown process. The MK-975.1 boasts remarkable versatility, accommodating an array of fabrics and elastic materials, thereby offering unparalleled flexibility in production setups.
Max Bonding Temp: 400°C
Speed: 6m/min
Power Requirements: 230 V AC 50 Hz single phase
Compressed Air: 90 psi (min), 120 psi (max), 5 CFM
Roller Width: 14mm
Dimensions: 600mm x 1200mm x 1400mm
Weight: 90kg
Choose options

Features
Top Heated Rubber Roller
Use: Provides consistent heat application to the top surface of materials.
Benefit: Ensures uniform bonding and sealing of materials, enhancing product quality.
Bottom Heated Rubber Roller
Use: Applies heat evenly to the bottom surface of materials.
Benefit: Promotes thorough bonding and sealing, resulting in durable and reliable seams.
Top Hot Air Flow
Use: Delivers a stream of hot air to the top surface of materials.
Benefit: Facilitates efficient activation of heat-activated adhesives and tapes, ensuring secure bonding.
Removable Platform
Use: Allows easy loading and unloading of materials onto the machine.
Benefit: Enhances user convenience and workflow efficiency, reducing downtime during material handling.
Attachable Cutter Unit
Use: Cutter unit trims extra fabric, maintaining an even gap between the adhesive edge and fabric edge.
Benefit: Streamlines production by eliminating the need for manual cutting, improving accuracy and productivity.
Fixed Position Preheated Tape Guide
Use: Positions and preheats tape before application onto materials.
Benefit: Ensures precise alignment and consistent bonding of tape, resulting in professional-quality seams.
Differential Speed
Use: Allows independent control of roller speeds for optimal material handling.
Benefit: Provides versatility in handling different materials and seam configurations, enhancing flexibility in production.
Auto Power Off Option
Use: Automatically shuts off the machine after a period of inactivity.
Benefit: Promotes energy efficiency and safety by preventing unnecessary power consumption when the machine is not in use.

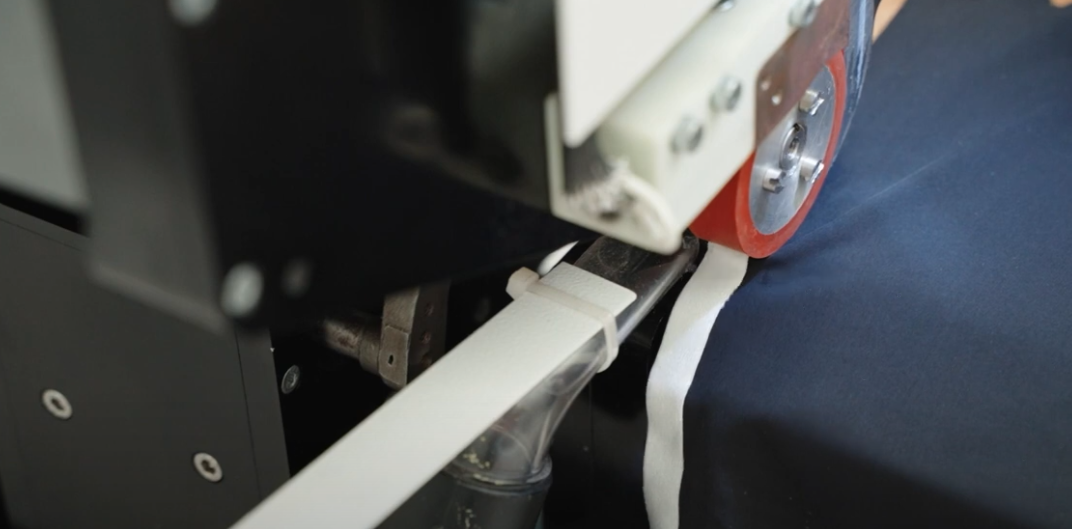

See the MK-975.1 in action
